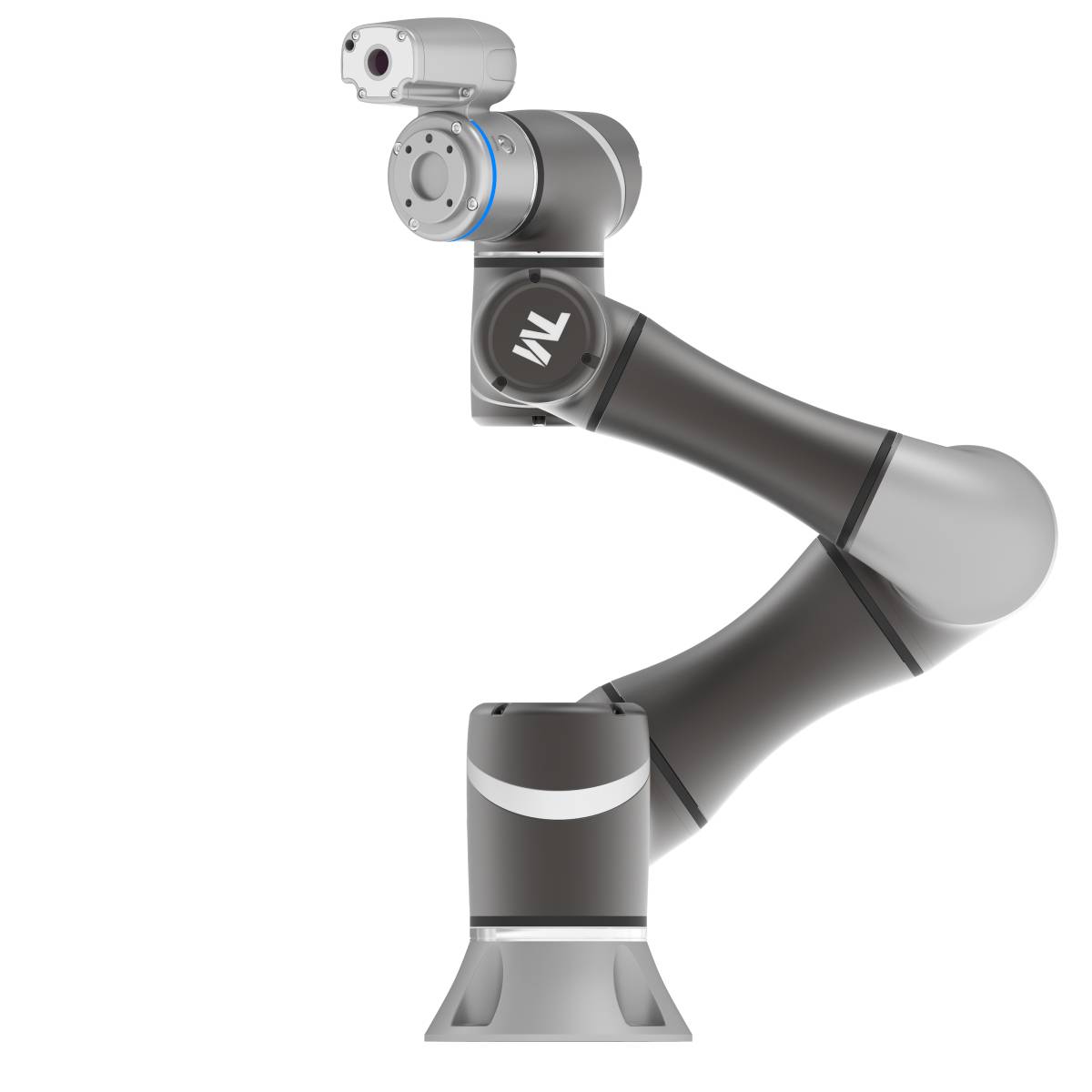

The TM5-700 collaborative robot is a compact and intelligent automation solution designed to meet the demands of modern, flexible manufacturing. Featuring an integrated vision system, the TM5-700 enables precise handling, inspection, and assembly tasks without the need for external cameras or complex setups.
Its compact footprint and lightweight construction allow seamless integration into existing production lines, making it well suited for Indian manufacturing environments where space optimization and quick deployment are critical. The TM5-700 supports safe human–robot collaboration, enabling improved productivity while maintaining operator safety. Janatics, as the authorized distributor of Techman collaborative robots in India, provides complete sales, integration, and service support for TM cobot solutions.
The built-in vision system enables accurate object detection, position correction, and inspection. This reduces system complexity and improves flexibility in applications involving part variation.
The TM5-700 is designed for confined workspace and bench-top applications. Its lightweight structure allows easy relocation and rapid deployment across multiple production lines.
Advanced force and collision detection features enable the robot to work safely alongside human operators without the need for safety fencing in most applications.
An intuitive programming environment allows quick task configuration and changeovers, reducing downtime and minimizing dependence on specialized robotics expertise.
The TM5-700 is ideal for high-mix, low-volume production environments and supports the transition toward Industry 4.0 and smart factory initiatives.
The TM5-700 collaborative robot is suitable for a wide range of precision manufacturing applications, including:
Small parts assembly
Pick and place operations
Vision-based quality inspection
Screw driving and fastening
Vision-based quality inspection
PCB handling and electronics assembly
Labeling and sorting
Light material handling
Electronics and electrical manufacturing
Consumer goods
Medical devices
FMCG packaging
Light engineering and assembly
| Parameter | Specification |
|---|---|
| Model | TM5-700 |
| Weight (kg) | 22.1 |
| Maximum Payload (kg) | 6 |
| Power Source | AC |
| Power Supply | 100 to 240 VAC, 50/60 Hz or 22 - 60 VDC |
| Controller Weight (kg) | 13.5 |
| Reach (mm) | 746 |
| Mounting | Wall, Table, Ceiling |
| Average Speed (m/s) | 1.1 |
| Maximum Speed (m/s) | 4 |
| Range: Joint 1 | +/- 270° |
| Range: Joint 2 | +/- 180° |
| Range: Joint 3 | +/- 155° |
| Range: Joint 4 | +/- 180° |
| Range: Joint 5 | +/- 180° |
| Range: Joint 6 | +/- 270° |
| Speeds: Joint 1 | 180°/s |
| Speeds: Joint 2 | 180°/s |
| Speeds: Joint 3 | 180°/s |
| Speeds: Joint 4 | 225°/s |
| Speeds: Joint 5 | 225°/s |
| Speeds: Joint 6 | 225°/s |
| Repeatability (mm) | +/- 0.05 |
| Typical Power Consumption (watts) | 220 |
| IP Classification | IP54 (Robot Arm), IP32 (Control Box) |
| Cleanliness | ISO Class 3 |
| Operating Temperature & Humidity | 0 to 50°C, 85% max. (with no condensation) |
| Storage Temperature & Humidity | -20 to 60°C, 75% max. (with no condensation) |
| Operating & Storage Environment | No corrosive gases or exposure to water-soluble cutting oil |
| Motor Power Supply | 48 VDC |
| Robot Arm Cable Length | 3m / 12m |
| Control Box I/O Ports | Digital In: 16, Digital Out: 16, Analogue In: 2, Analogue Out: 1 |
| End Arm Tool I/O Ports | Digital In: 4, Digital Out: 4, Analogue In: 1, Analogue Out: 0 |
| I/O Interface | COM: 3, HDMI: 1, LAN: 3, USB 2.0: 4, USB 3.0: 2 |
| Communication | RS-232, Ethernet, Modbus TCP/RTU (master & slave) |
| Communication (Optional) | Optionally support specified network card of PROFINET, EtherNet/IP, EtherCAT, CC-Link |
| I/O Power Supply | 24 VDC 2.0 A (control box) / 24 VDC 1.5 A (tool) |
| Programming Environment | TMflow (flowchart based, Script based), TM Craft (development program) |
| Integrated Camera Available | 5M pixels, colour, 100mm working distance*(1) or without built-in vision |
| Certifications | ISO 13849-1, ISO 10218-1, ISO/TS 15066 CE, SEMI S2 (optional) |
| AI Functions (Optional) | Classification, Object detection, Semantic Segmentation, Anomaly detection, Instance segmentation (External hardware required - AI server required)*(1) |
| Applications | Positioning, 1D/2D Barcode reading, OCR, Defect Detection, Measurement, Assembly check*(1) |
| Positioning Accuracy | 2D Positioning: 0.1 mm TM Landmark 3D positioning (the working point is located 100/200/300mm away from the landmark ): 0.10/ 0.20/ 0.33 mm*(1) |
| Eye in Hand (Build-in) | Auto-focused Colour camera with 5M resolution, working distance 100mm - infinite*(1) |
| Eye in Hand (Optional) | Support maximum 2 external cameras either 2 GigE 2D camera or 1 X GigE 2D camera + 1 X 3D Camera*(1) |
| Note | *(1) The features mentioned are applicable only to the built-in vision cobot, and they also support the addition of an external camera integrated with the TM cobot |
