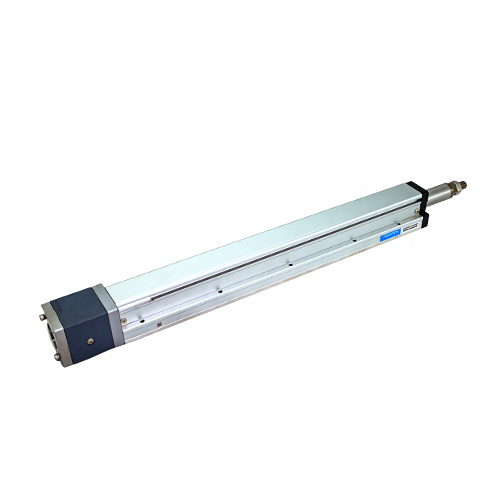

AERS Series – High-Performance RodType Ball Screw Actuators
Integrated Precision: Features a standard ball screw with a built-in guideway for maximum rigidity
Flexible Sizing: Available in 44mm, 54mm, 82mm, and 120mm frame widths
Adaptable Performance: Offers strokes up to 800mm with payloads reaching 110kg
High-Speed Dynamics: Capable of rapid motion up to 1600 mm/sec
Exceptional Accuracy: Provides industrial-grade repeatability of ±0.01mm
Fully Enclosed Design: Internal components are protected from debris for long-term reliability
Multiple Brand Motor Support: This actuator is compatible with any major servo brand up to 400W..
Step-Servo Availability: Step-servo motors are available for this model
Versatile Installation: Flexible motor mounting options allow the unit to fit various machine layouts
Step-Servo Controller JC100
An available controller with Janatics Step Servo
Supports 127 points I/O mode (NPN)
Uses Pulse Direction signals for control
Supports Modbus RS-485 communication
Includes Torque based Homing Mode
Pressing and Riveting, Automotive Assembly, Medical Equipment, Conveyor Systems
| Parameter | Specification |
|---|---|
| Series | AERS |
| Product Description | Rod Type ball Screw |
| Profile Sizes(mm) | 44,54,82,120 |
| Stroke Length (mm) | 50….800 mm |
| Ball Screw Lead (mm) | 2,5,6,10,12,20,32 |
| Maximum Speed (mm/sec) | 1600 |
| Repeatability (mm) | ±0.01 |
| Maximum Payload Horizontal (kg) | 110 |
| Maximum Payload Vertical (kg) | 33 |
| Maximum Rated Thrust (N) | 1388 |
| Maximum Ball Screw Ø (mm) | C7 Ø 16 |
| Motor Power (AC Servo in W) | 100, 200, 400 watts |
| Servo Torque (N) | 0.32 , 0.64, 1.27 |
| Operating Voltage | AC 230V, DC 24V |
| Ball Screw Nut Types | Recirculating ball nut |
| Motor Mounting Position |
Direct Left Side Right Side Bottom Side |
| Motor Type |
Servo Motor Step Servo |
| Medium temperature° C | +5°to +40° |
| Medium temperature° F | +41°to +104° |
| Duty Cycle | 100% |
| HSN | 84129090 |
