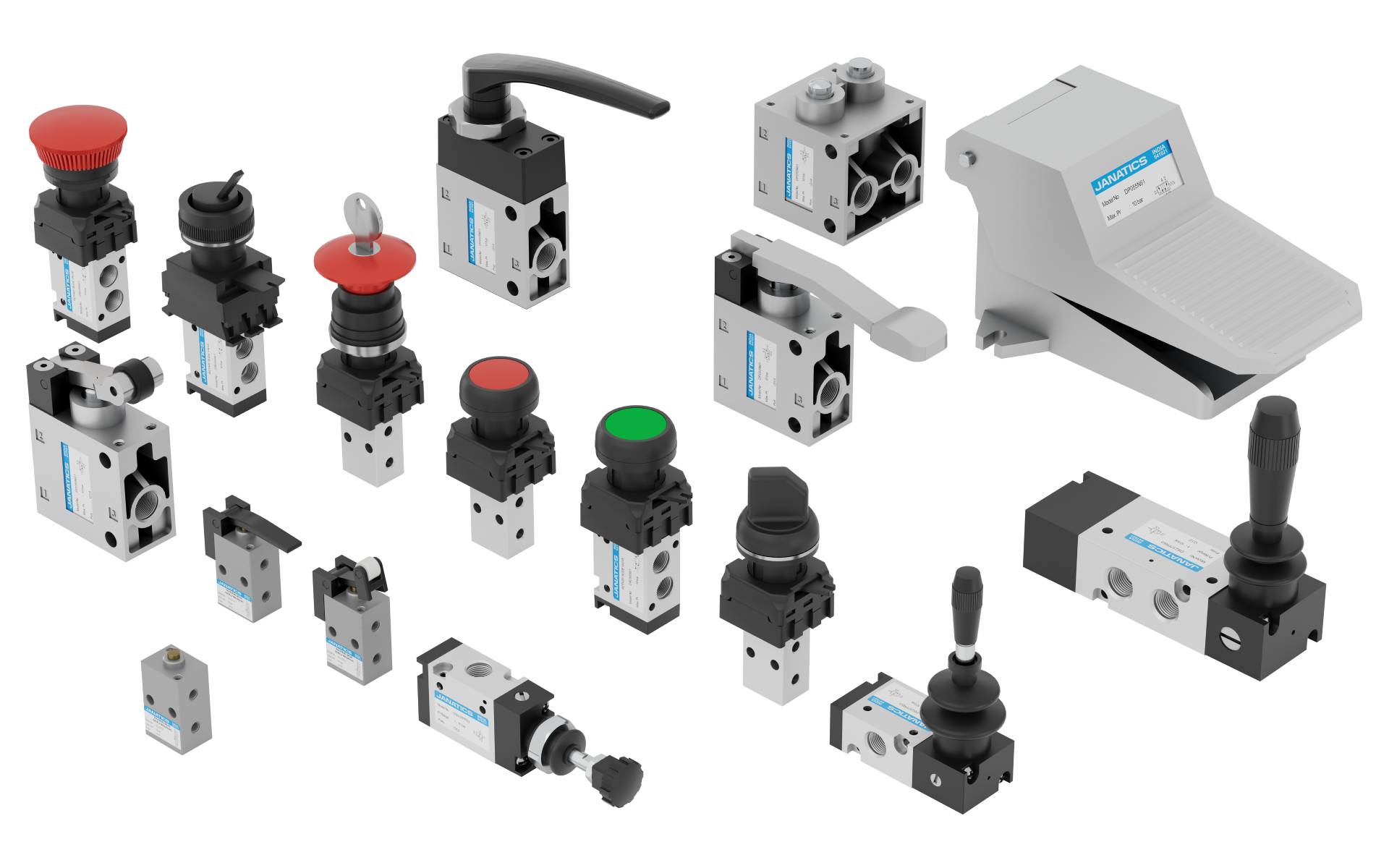

Janatics Manually and mechanically Operated direction control Valves are with spool type and poppet type design. To control the flow of compressed air, the valves are operated by hand lever, Push button, foot pedal, etc.… for switching the positions. These valves are mounted with the holes provided in the housing, self-mounting.

DS2 Series – G1/8,1/4,1/2 – Hand lever operated, Push pull operated
The types are available in 3/2, 5/2 and 5/3.
DP Series – G1/4 – Stem actuated, Roller Lever, Finger lever, Hand lever, Foot operated
The types are available in 3/2, 5/2
DP Series – M5 – Stem actuated, Roller Lever, Finger lever
The types available in 3/2 NC.

Manually Operated Valves Panel Mounting

Janatics Manually Operated Valves, Panel Mounting type are used in the pneumatic circuit in panels. The valve is mounted with a adaptor unit with locking provision for the Panel switch. This adaptor unit can accommodate variety of switches. According to the switch type the panel thickness is recommended for the valve. A Nut is provided for mounting the valve unit with knob in the panel board. In this type we have 3/2 NC, 3/2 NO and 5/2 in spool type design. 3/2 NC in Poppet Type design.

Type of Switches:

• Mushroom head push and turn

• Flush Head – Red & Green

• Mushroom head push – Red, Green and Black

• Symmetric Head – Black

• Symmetric Head Spring Return – Black

• Lever Head – Black

• Mushroom head with Lock and Key – Red

• Tip Head – Black
