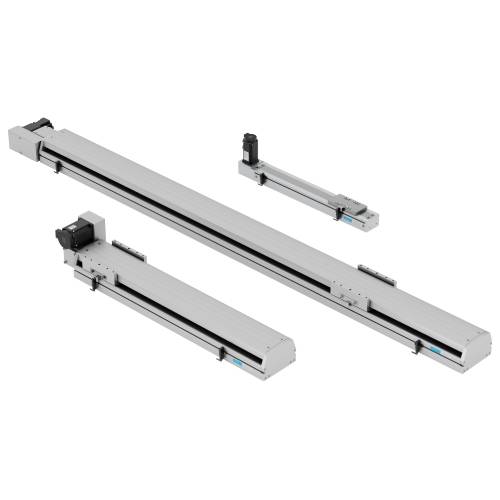

AELB Series – High‑Speed Rodless Belt‑Type Actuators Optimized for speed: Designed as a toothed‑belt, rodless linear actuator for long strokes and fast
Flexible Sizing: Available carriage/profile widths — 50 mm, 65 mm, 102 mm, 135 mm, 170 mm, 220 mm
Extended Stroke Range: Stroke lengths from 50 mm up to 3500 mm to cover short to very long travel requirements
High-Speed Dynamics: Capable of rapid motion up to 2000 mm/sec for high throughput applications
Mounting: Ideal for horizontal mounting and long-stroke applications
Reliable Precision: Industrial repeatability of ±0.04 mm for accurate, repeatable positioning in production environments
Rodless, Space‑Saving Design: Belt drive with moving carriage eliminates protruding rods, saving machine space and simplifying long‑stroke layouts
Fully Enclosed Options: Carriage and belt protection (covers) available to shield internal components from debris and extend service life
Wide Motor Compatibility: Supports major servo motor brands up to 750 W (customer‑specified); flexible motor mounting orientations to suit different machine layouts
Pick-and-Place Operations, Long Stroke Applications, Conveyor Systems.
| Parameter | Specification |
|---|---|
| Series | AELB |
| Product Description | Rod less Type Belt |
| Profile Sizes(mm) | 50,65,102,135,170,220 |
| Stroke Length (mm) | 50.....3500 |
| Ball Screw Lead (mm) | 32,40 |
| Maximum Speed (mm/sec) | 2000 |
| Repeatability (mm) | ±0.04mm |
| Maximum Horizontal (Kg) | 85 |
| Maximum Vertical (Kg) | - |
| Maximum Rated Thrust (N) | 367 |
| High Rigidity Linear Guide (mm) | W23XH18 |
| Operating Voltage | AC 230V |
| Motor Power (AC Servo in W) | 100, 200, 400, 750 W |
| Servo Torque (Nm) | 0.32 , 0.64, 1.27,2.4 |
| Motor Mounting Position |
Left Side Right Side Left Upper Left Lower Right Upper Right Lower |
| Motor Type | Servo Motor |
| Medium temperature° C | +5°to +40° |
| Medium temperature° F | +41°to +104° |
| Duty Cycle | 100% |
| HSN | 84129090 |
